Bluetooth gateway 4.2/5.0 big range 100m compatible different
devices and protocols filtering tri-angle POE Outdoor IP67
Model Number: ITBG602-M
Bluetooth gateway outdoor type ITBG602-M_BLE 4.2, WIFI, Ethernet
Product Characteristic
Support for PoE power supply or power adapter;
Support for IEEE 802.11n, IEEE 802.11g, IEEE 802.11b protocol;
BLE 4.2/5.0 is supported;
Integrated Bluetooth PA/LNA;
Support LTE-TDD/LTE-FDD/TD-SCDMA/UMTS/EVDO/EDGE/GPRS/GSM/CDMA;
(Optional)
A WAN/LAN adaptive port;
RoHS compliant;
FCC,CE compliant.
Product Overview:
It is a Bluetooth 4.2/5.0 gateway with a 580MHz MIPS 24KEc
processor, a 64MB DDR2 DRAM and 16MB FLASH. The Bluetooth Gateway
integrates PA and LNA, so that the Bluetooth scanning and
connectivity distance is more than 100 meters, it increases the
coverage range and reduces the system cost.
It can use PoE power supply (IEEE 802.3at (Class1)) or power
adapter (wide input voltage range: 6V-24V).
can be compatible with different Bluetooth terminal devices,
convenient for users to connect with different Bluetooth terminal
devices such as Bluetooth bracelet, Bluetooth jump rope, Bluetooth
door lock, various Bluetooth sensors, etc. The Bluetooth gateway
can scan data from Bluetooth devices, remote control through the
connection with Bluetooth terminal devices, to achieve two-way
transmission of data.
It supports different communication protocols: UDP, TCP and MQTT.
Bluetooth filtering is supported including Bluetooth name
filtering, signal strength filtering, MAC address filtering, and
more.
By receiving the Received signal strength index (RSSI value) of the
Bluetooth signal from the Bluetooth terminal, you can calculate the
distance from the Bluetooth terminal to multiple Bluetooth
gateways, so that you can know the position of the Bluetooth
terminal by tri-angle localization algorithm.
It should be used in a wide range of medical, elderly care, sports,
fitness, education, smart home, and a variety of industrial
applications.
Product Specification
| Power | DC6-28V(2A) PoE (PoE switch up to 57V), IEEE 802.3at(Class1) compliant |
| Working current | 280mA@12V (with 4G module) 180mA@12V (without 4G module) |
| Operating temperature | -20℃~70℃ |

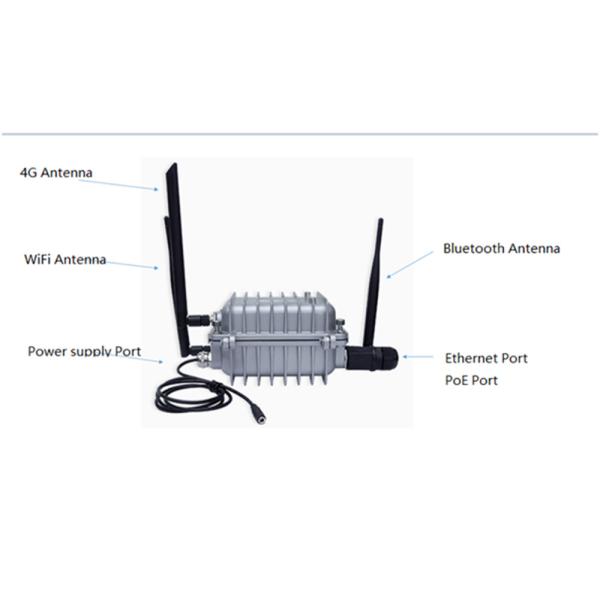

| Interface | Ethernet port, power interface, reset button |
| WiFi |
| WiFi protocol | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Data rate | IEEE 802.11 b Standard Mode: 1,2,5.5,11Mbps |
| IEEE 802.11 g Standard Mode: 6,9,12,18,24,36,48,54Mbps |
IEEE 802.11n : 72Mbps @ HT20 150Mbps @ HT40 |
| Receive sensitivity | HT40 MCS7 : -67dBm@10% PER(MCS7) |
| HT20 MCS7 : -73dBm@10% PER(MCS7) |
| 54M: -76dBm@10% PER |
| 11M: -91dBm@ 8% PER |
| Transmit power | IEEE 802.11n: 15dBm @HT40 MCS7 15dBm@HT20 MCS7 |
| IEEE 802.11g: 16dBm |
| IEEE 802.11b: 18dBm |
| Wireless security | WPA/WPA2, WEP, TKIP, and AES |
| Working mode | Bridge,Gateway,AP Client |
| Bluetooth |
| Bluetooth protocol | Bluetooth ® 5.0 |
| The data rate | Uncoded: 1Mbps/2Mbps |
| Wireless security | AES HW Encryption |
| The connection distance | 100m
|
| Transmit power | 0~+18dBm |
| 4G LTE |
| Communication protocol | LTE-TDD/LTE-FDD/TD-SCDMA/UMTS/ EVDO/EDGE/GPRS/GSM/CDMA |
R&Q:
- Bluetooth gateway + beacon asset location management solution
Description of the advantages of the Bluetooth gateway + beacon
asset location management solution:
Real-time inventory: Bluetooth beacons are broadcast at a certain
frequency, so assets can be inventoryed in real time.
Regional positioning: The asset can be located by the signal
strength of the Bluetooth beacon received by the Bluetooth gateway.
Loss of alarm: If the Bluetooth beacon leaves the designated area,
the background will send an alarm signal in time. (Bluetooth
gateway cannot scan the corresponding beacon)
- The difference between bluetooth long connection and short
connection of bluetooth gateway
The main differences between long and short Bluetooth connections
in Bluetooth gateways are as follows:
Long connection: The Bluetooth gateway and the Bluetooth terminal
device will not be disconnected after the connection is
established. If the connection is disconnected due to unknown
factors, the Bluetooth gateway will automatically reconnect with
the Bluetooth terminal device.
Short connection: The Bluetooth gateway will disconnect and no
longer reconnect if there is no new data exchange within the set
time. During the operation, as long as new data is sent and
received, the timing will restart.
When the connection timeout is set to 0, it is a consistent
connection (long connection). Using the command that triggers the
disconnection will also prevent the gateway from reconnecting to
the device.
R&Q:
- What is the IP address of the Bluetooth gateway?
The default IP address of Createk Bluetooth gateway is 10 10 10
254. The IP settings of each Bluetooth gateway manufacturer will be
different. Please consult the respective Bluetooth gateway
manufacturer for details!
